GR Corolla Rear End Links

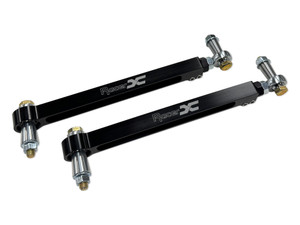

The Racer X Fabrication rear end links for the 2023+ Toyota GR Corolla are designed to increase handling, response, and feedback by eliminating the OEM rubber bushings. The Racer X rear end links feature a large spherical bearing and chromoly rod end with a double adjuster design that allows for easy adjustment. The end link body is CNC machined from 6061-T6 aluminum and features a pinch bolt design to lock the threaded adjuster in place. We tested the completed assembly on our in-house universal testing machine to an axial loading of over 8,000 lbs of force -- which is far beyond any sway bar force that can be induced. The completed assembly is anodized black with zinc plated hardware.
What's Included
- (2) Racer X end link assembly
- (2) Rod end bushing
- (2) Rod end small spacer
- (2) M12 grade 12.9 socket head cap screw
- (2) M12 flange nuts
- (4) Aluminum bushings
Compatibility
- 23+ Toyota GR Corolla
Installation
- Difficulty Level:
- Install Time: 1 to 2 hours
- Installation Guide
Proposition 65
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Off Road Use Only
WARNING: Racer X Fabrication products are intended for off-road / competition use only and may never be used on a public road.
